Equipment Specifics

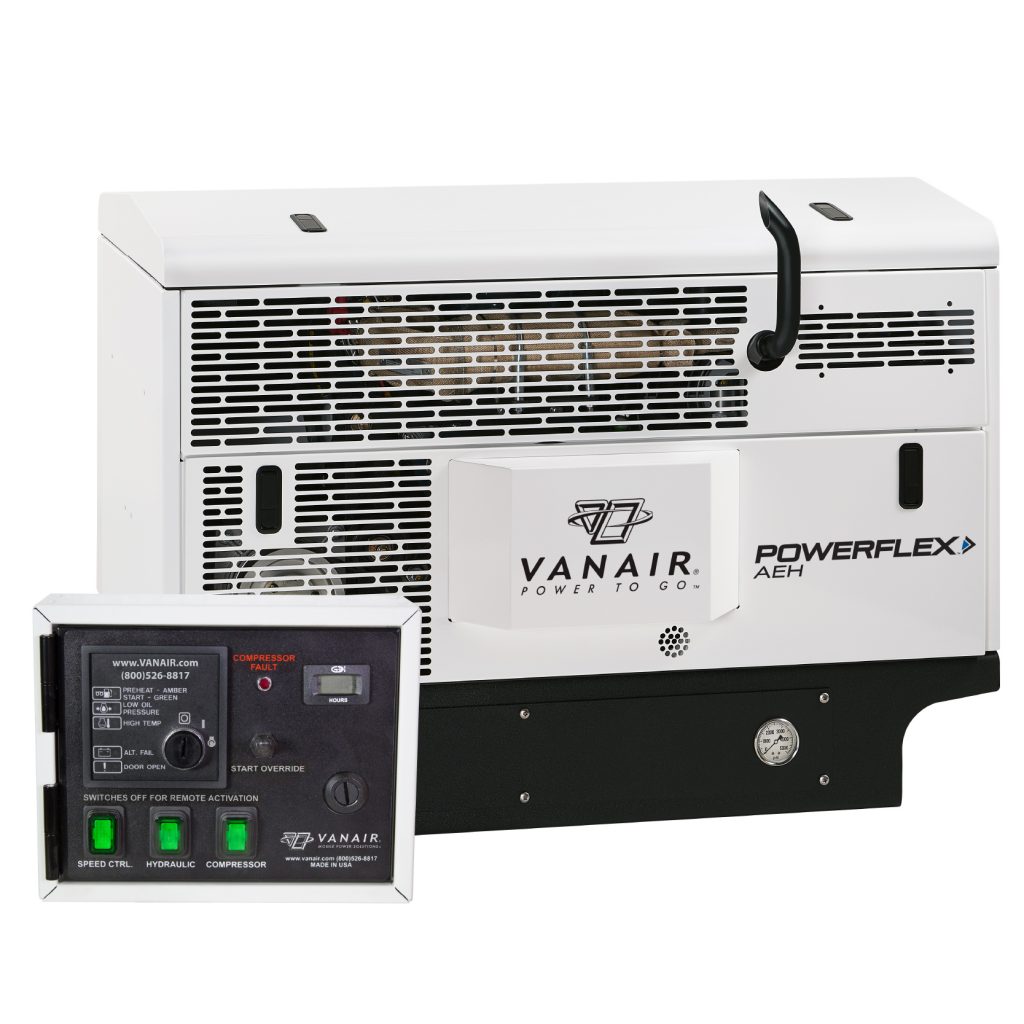

The PowerFlex™ AEH is equipped with a 40 CFM at 150 PSI rotary screw air compressor, a 6,800 watt AC generator, and powerful hydraulic pump, providing 13 GPM and up to 3000 PSI. Save fuel costs, increase your productivity and meet EPA challenges with the PowerFlex AEH.

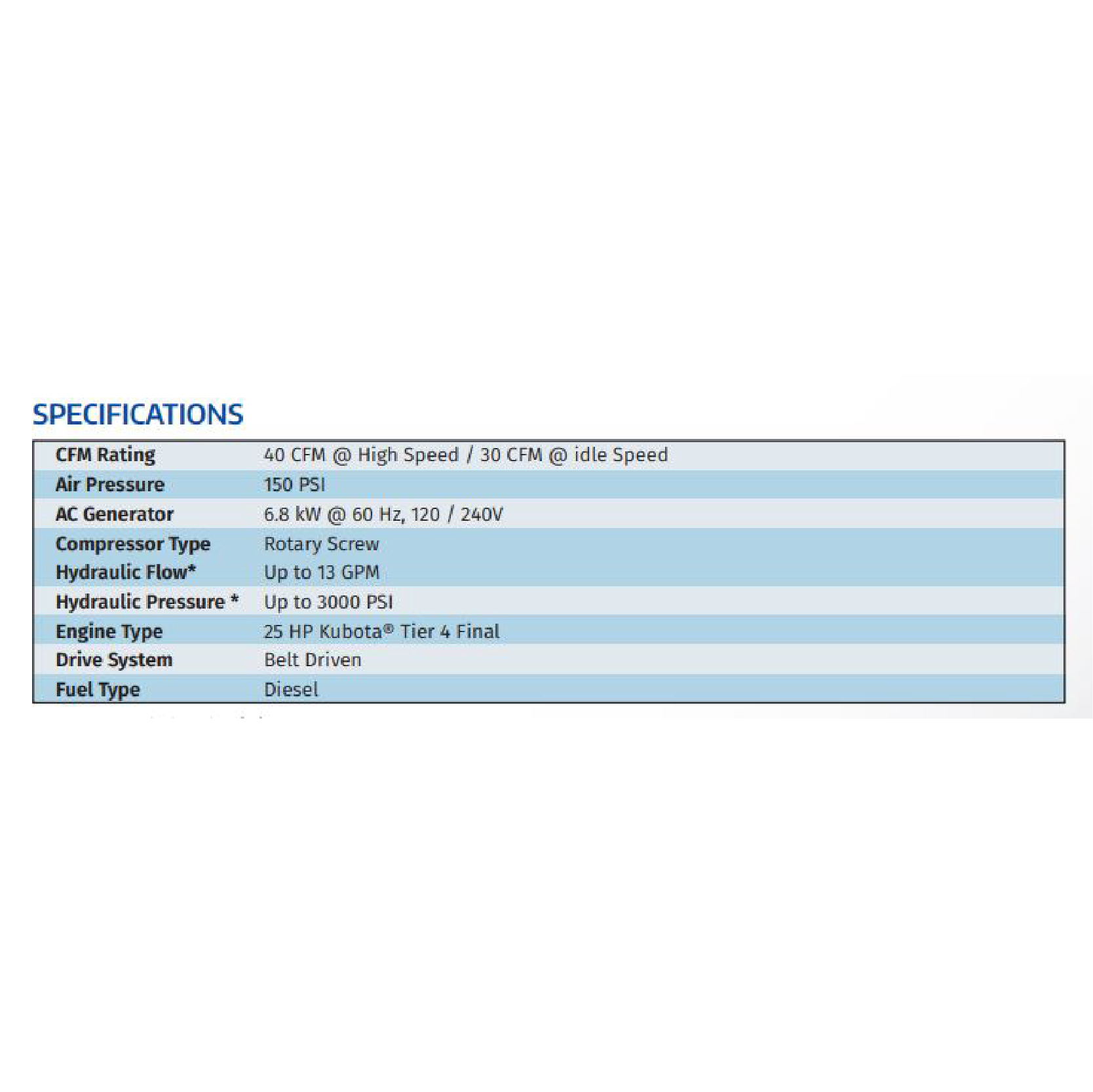

CFM Rating | 40 CFM @ High Speed / 30 CFM @ idle Speed | Air Pressure | 150 PSI |
AC Generator | 6.8 kW @ 60 Hz, 120 / 240V | Compressor Type | Rotary Screw |
Hydraulic Flow* | Up to 13 GPM | Hydraulic Pressure * | Up to 3000 PSI |
Engine Type | 25 HP Kubota® Tier 4 Final | Drive System | Belt Driven |
Fuel Type | Diesel | Fuel Capacity | Plumb to Chassis or Remote Tank |
Dimensions with fittings (In.) – 47.6 L x 21.0 W x 33.4 H*
Dimensions listed are not a complete representation of total space necessary. Please consult Vanair for overall space and air requirements.
Dry weight (Lbs.) – 870
*Ratings are approximate and are based on 120° F hydraulic fluid temperature. Hydraulic relief valve is set at 3300 PSI. Consult Vanair for specific details.
