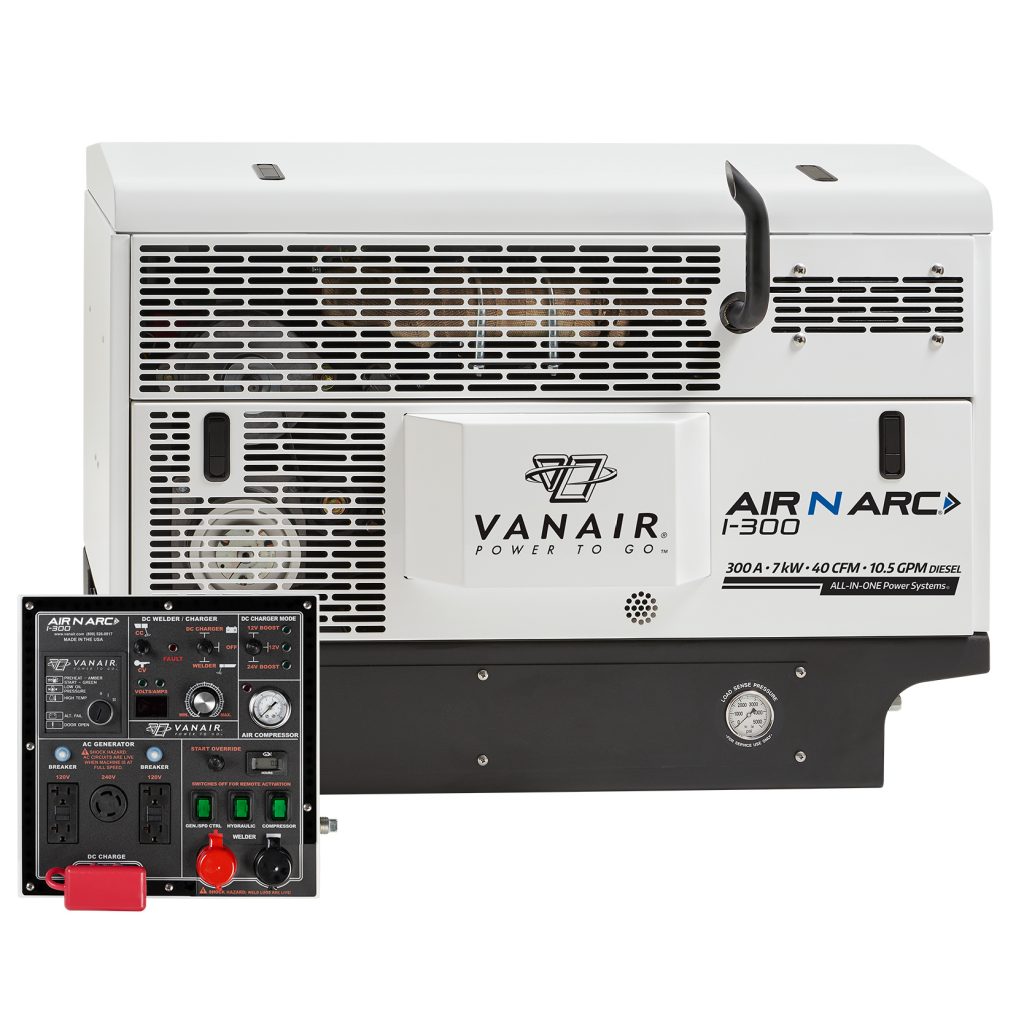

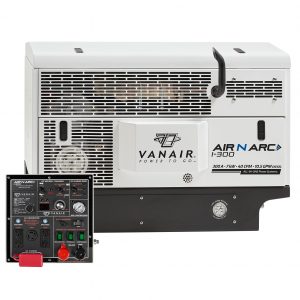

Vanair Air n Arc I-300 Air Compressor/Generator/Welder/Hydraulic/Battery Booster System
Equipment Specifics
Vanair’s inclusive, innovative, indispensable Air N Arc® I-300 is the first system in the world to offer six forms of power in a single 48” unit with full multi-functioning capabilities. The Air N Arc® I-300 unique system allows you to turn off the trucks engine and while still supporting the electrical of the truck, so all the emergency lighting can still be used without fear of killing the truck battery. Based on the technology of the Air N Arc® 300 diesel system, it provides an integrated 40 CFM rotary screw compressor, 7 kW AC generator, 300 AMP welder, battery booster and battery charger, with the added power of a 13 GPM hydraulic pump…all driven by a single engine. The Air N Arc® I-300 offers enough power to run a crane and the technology to integrate with the crane control.

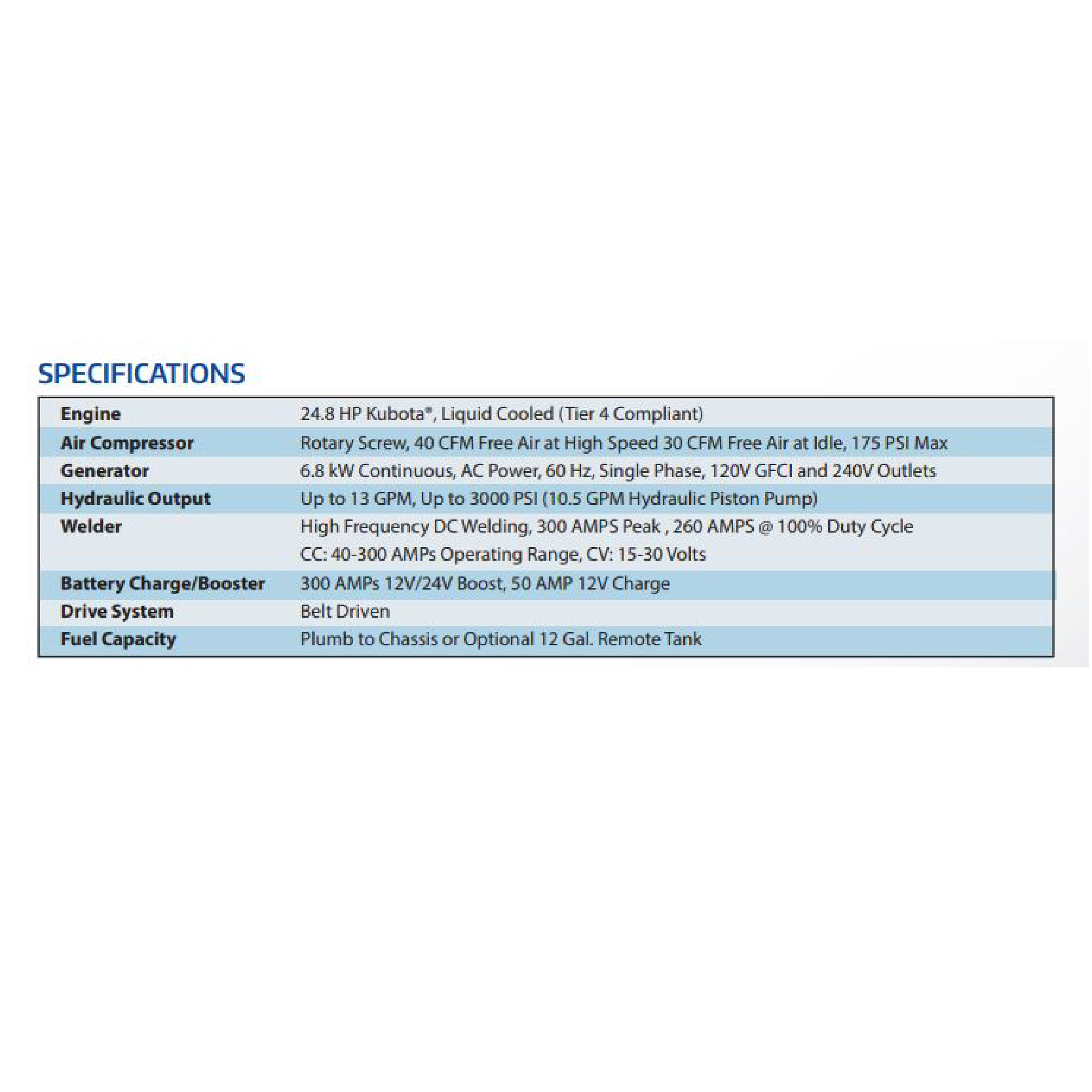

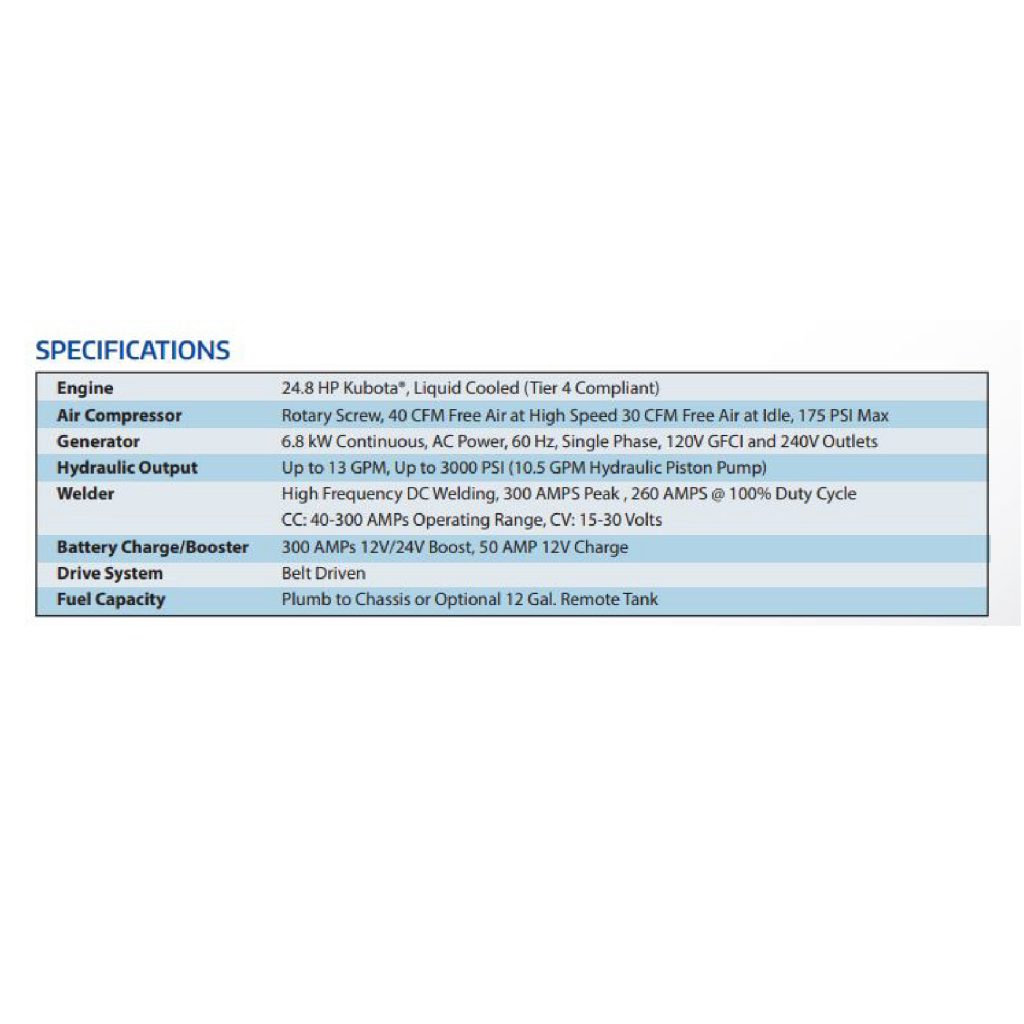

| Engine: | 25 HP Kubota®, Liquid Cooled (Tier 4 Compliant) |
|---|---|
| Compressor Type: | Rotary Screw |
| CFM Rating: | 40 CFM Free Air at High Speed, 30 CFM Free Air at Idle |
| Max Pressure: | 175 PSI |
| Generator Wattage | 7 kW Peak – 6.8 kW Continuous, AC Power, 60 Hz, Single Phase, 120V GFCI and 240V Outlets |
| Hydraulic Output: | Up to 13 GPM, Up to 3000 PSI (10.5 GPM Hydraulic Piston Pump) |
| Welder Amperage: | High Frequency DC Welding,270 AMPs at 100% Duty Cycle CC: 40-300 AMPs Operating Range, CV: 15-30 Volts |
| Battery Booster/Charger: | 300 AMPs 12/24V Boost, 50 AMP 12V Charge |
| Drive System: | Belt Driven |
| Fuel Tank: | Plumb to Chassis or Optional 12 Gal Remote Tank. |
Dimensions –
Foot Print (In.) – 47.1L x 21.0W x 33.4H
Dry Weight with Control Panel (Lbs.) – 852
Dimensions listed are not a complete representation of total space necessary. Please consult Vanair for overall space and air requirements.
Product improvement is a continuing goal. Design and specifications are subject to change without notice or obligations.
